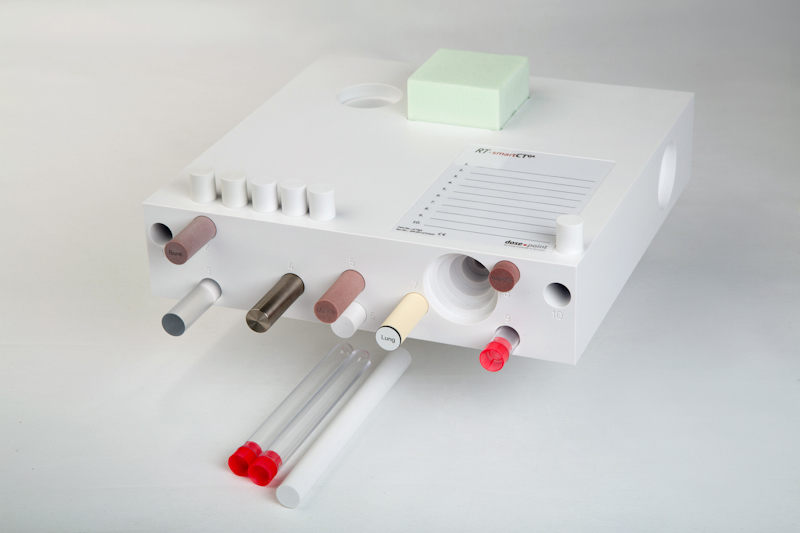

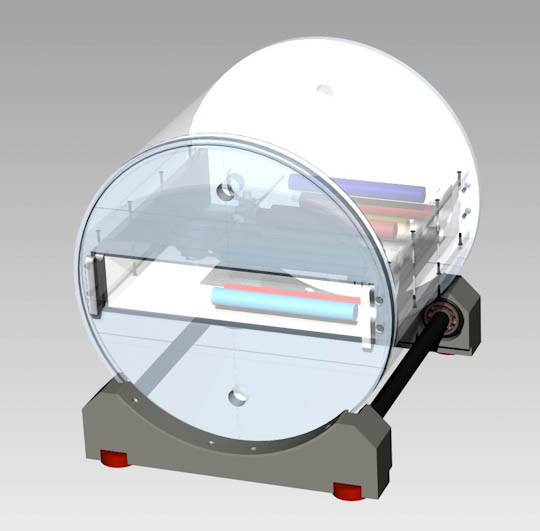

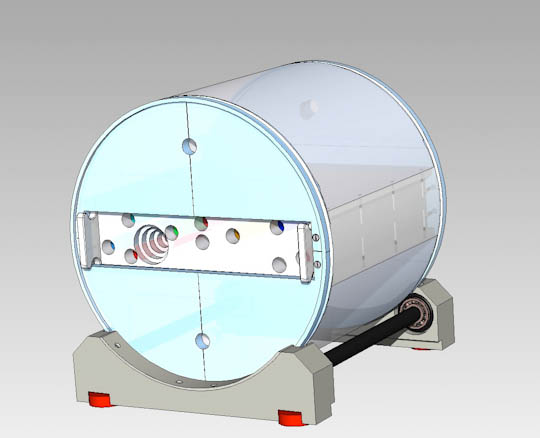

Take a RW3 block which fits inside the smartIMRT in different orientations, drill the holes for the above inserts, add some geometrical structures for dimension and distortion checks and add test tubes for reference liquids and tissue.
And combine with another smart tool: RT-smartCUBE, the universal miniature phantom which now contains resolution/contrast tests for medical imager and 'Virtual Tumors'.
This is Revolutionary New: turn your RT QA phantoms within minutes to a 'Virtual Patient' for the entire Process QA, from Imaging to Treatment.

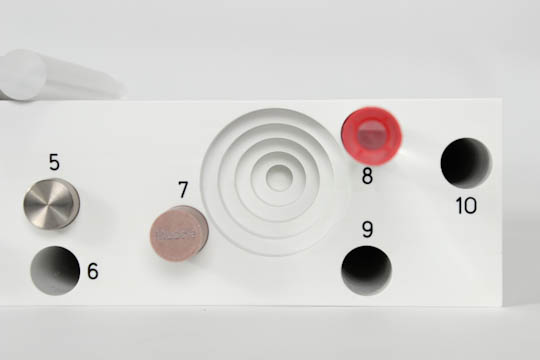

The hole #5 is in the middle of the phantom, and the chamber reference point in ISO center.

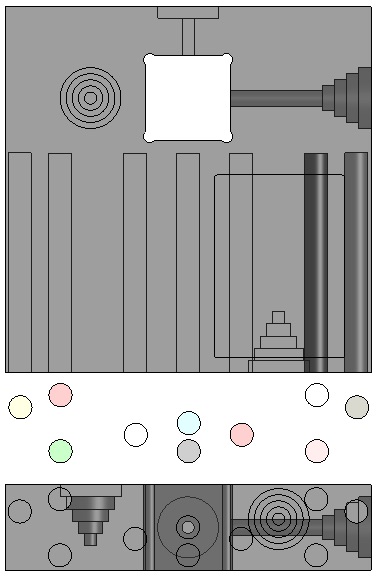

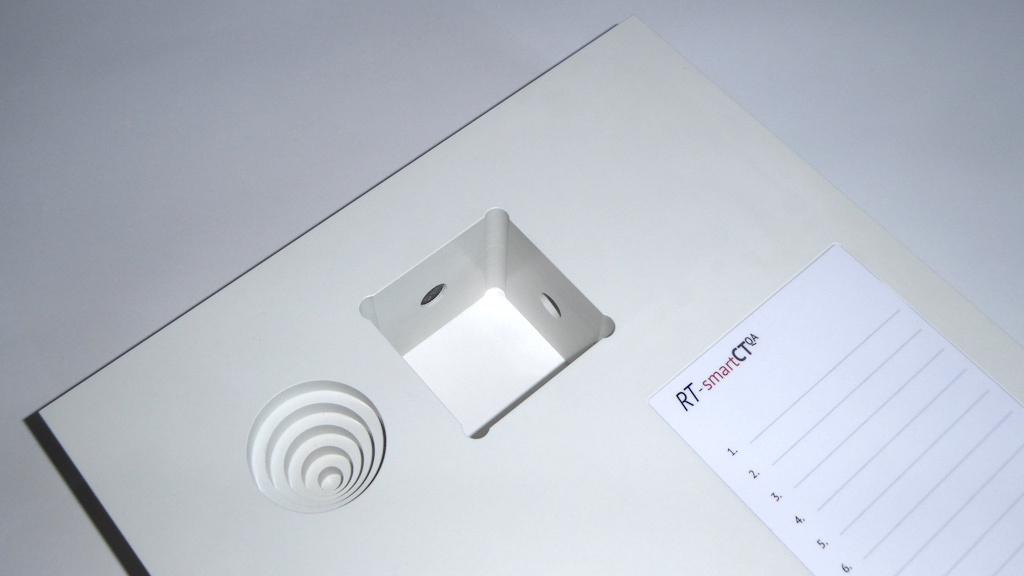

As all the faces of the RW3 block have to be machined on CNC tools it is easy and inexpensive to add some simple structures. On 4 faces there are identical 'step funnel holes', with diameters and depth with step sizes from 1 to 5 cm.
On the upper and lower faces are plastic pins inserted, perpendicular and with length of 200 mm each.
There is space in the rear part which the customer can use to insert gold markers for example.
