- A compact and universal cubical phantom with size 7 x 7 x 7 cm
- Manufactured with the full precision of CNC machines as structural element
- for tests of geometry, positioning, ISO center accuracy, Linac MV and Imager ISO conformity
- fits inside the RT-smartIMRT for checks on rotational ISO precision
RT-smartCUBE-iso is a multifunctional tool for checks of a variety of geometrical parameters, as ISO center accuracy of radiation field, EPID, keV radiation field/Imager, ISO center position towards room laser beams.
In order to have proper adjustment om the couch a small leveling palte is available. With an adapter the smartCUBE can be used in the center of the RT-smartIMRT for isocentic checks during gantry rotation.
-
RW3 composite cube with tungsten absorbers
-
Tungsten rods of different diameters for different purposes
-
3D center marker through cube main axis
-
4mm tungsten ball in the Center as ICO center reference
-
5 x 5 cm markers in ISO center plane and SID 100
-
Marker rods for SID=100 at 90º beam incidence
-
RT-smartCUBE as standalone tool or in combination with RT-smartIMRT (adapter required)
-
Shows tilted beam incidence and unfitting MV - kV Imaging beams
-
For basic IGRT checks
-
Made of standard RW3 slab phantom plate
-
Robust and versatile

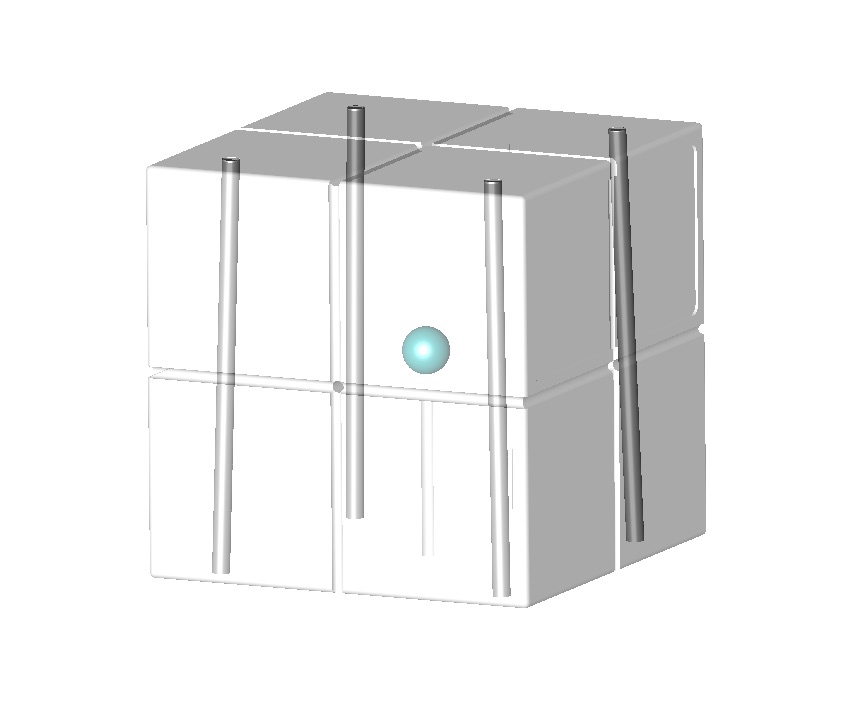

RT-smartCUBE-iwl is a simplified version with a 8 mm diameter tunsten ball exactly in the center for tests according to Winston-Lutz
smartCUBE-iso
smartCUBE-iwl
